Raws li qhov yuav tsum tau muaj kev ruaj ntseg thiab thoob ntiaj teb cov cai txo cov yas txuas ntxiv, cov ntawv ntim ntawv tau dhau los ua ib qho kev daws teeb meem tseem ceeb hauv kev lag luam ntim khoom yooj yim. Cov ntawv sib txawv tam sim no muaj cov teeb meem xws li kev nqus tus number case siab, noo noo rhiab heev, nto roughness thiab kev tso npe tsis ruaj khov thaum lub sij hawm siab -ceev flexographic luam ntawv ntau lawm.
Changhong flexo tshuab luam ntawv muab tailored ntawv luam kev daws teeb meem rau ntau yam ntim daim ntaub ntawv, pab manufacturers ua kom ruaj khov luam ntawv zoo, muaj peev xwm ua tau zoo rau cov ntawv ntim luam ntawv daim ntawv thov thiab txhim khu kev qha cov ntaub ntawv adaptability nyob rau hauv txawv daim ntawv qauv thiab converting txheej txheem.
Burger Wrapping Ntawv
Kraft Daim Ntawv Hnab
Cone Wrapper
Ntawv khob
Khoom noj khoom haus Ntim Box
Napkin
Ntawv Flexo Printing Solutions
Changhong flexo luam ntawv daws teeb meem ua hauj lwm nrog cov ntawv substrates xws li 12 mus rau 400 gsm, thiab ua kom ruaj khov kev ua tau zoo nyob rau hauv tag nrho cov hom ntawm ntim daim ntawv thov scenarios.
Kraft Daim Ntawv
Zoo rau eco-cov hnab ntim khoom zoo, ntim khoom noj thiab ntim khoom lag luam. Nws yog qhov nyuaj txaus thiab muaj peev xwm thauj khoom tiag tiag -cov kabmob muaj peev xwm.
Dawb Cardboard
Qhov zoo tshaj plaws rau kev ntim khoom siab -kawg, cov ntawv lo thiab lub thawv ntawv luam ntawv. Nws du nto ua haujlwm zoo uas qhia cov qauv zoo thiab cov xim ci.
Coated Ntawv
Nws muaj qhov zoo nkauj gloss thiab qhia tau tias tus number case zoo heev, yog li nws tau dav siv rau cov khoom noj thiab ntim tshuaj txhua hnub.
PE Coated Ntawv
Zoo rau cov khob ntawv, pob khoom noj thiab dej noo- pov thawj ntim. Nws yog ib qho yooj yim los luam tawm thiab kuj muaj kev txhim khu kev qha waterproof.
Daim ntawv qhia zaub mov
Ua rau lub hnab cij, ntim khoom noj ceev thiab ntim zaub mov, thiab nws ua tau raws li tag nrho cov zaub mov - qib cov qauv tsim.
Recycled Ntawv
Ib qho mus -rau kev xaiv rau eco- tus phooj ywg, kev ntim khoom ruaj khov. Thaum luam ntawv nrog flexo, nws xav tau kev tswj nruj nruj thiab kev tuav lub vev xaib.
Cov Kev Sib Tw Tseem Ceeb hauv Kev Luam Ntawv
- Ntau hom ntawv nqus cov cwj mem sib txawv, uas feem ntau ua rau cov xim tsis sib xws.
- Thaum luam ntawv nyob rau hauv high speeds, daim ntawv nyhav ncab thiab lub vev xaib tuaj yeem tawm mus.
- Cov qauv fiber ntau ntawm cov ntawv cuam tshuam qhov tseeb ntawm kev sau npe luam ntawv tuaj yeem ua tau.
- Cov ntawv sib sib zog nqus yog yooj yim dua rau wrinkling lossis tearing thaum lub sij hawm luam ntawv.
- Cov ntawv tuab xav tau kev tswj nruj dua thaum unwinding thiab rewinding.
- Kev ziab nrawm ntawm cov dej-raws li tus number case yog lub hauv paus rau kev tsim khoom tag nrho.
Qhov zoo ntawm Changhong Paper Flexo Printing Solutions
-
High -Precision Tension Control SystemNws ua kom lub vev xaib txav mus ruaj khov thaum lub sijhawm siab - luam ntawv nrawm, uas pab txo qis ntawm cov khoom ncab thiab kev sib txawv ntawm kev sau npe.
-
Kev Tswj Xyuas Kev Ruaj NtsegNws ua rau ntau- xim luam ntawv ntau dua, yog li nws tuaj yeem ua tau raws li qhov yuav tsum tau muaj ntawm cov khoom ntim khoom zoo -.
-
Tau tshaj dej -Based Ink PrintingNws ua haujlwm zoo nrog eco- dej phooj ywg-raws li inks, ua raws li kev hloov pauv mus rau kev ntim khoom ruaj khov.
-
High -Efficiency Drying SystemNws ua kom tus number case qhuav rau ntawm daim ntawv, txo cov teeb meem xws li ink blocking thiab smearing. -
Wide Material Compatibility
Nws ua haujlwm nrog ntau yam ntawv hnyav, cov qauv saum npoo siv hauv kev ntim khoom. -
Siab -Speed ruaj khov ntau lawmNws yog tsim los rau loj - ntim ntim ntau lawm, pab txhim kho kev ua haujlwm tag nrho.
Qauv piv
|
Tshuab Hom |
Core Zoo |
Tej kev siv |
|
Gearless Flexo Printing Tshuab |
Kev ywj pheej servo tsav, kev sau npe ruaj khov, hloov txoj haujlwm ceev |
High -zoo luam ntawv rau daim duab kos duab, siab -grammage kraft ntawv, thiab ntau yam khoom ntim zoo. |
|
Central Drum Flexo Printing Tshuab |
Kev sau npe raug siab, ruaj khov siab - ceev luam ntawv |
Loj - nplai, ntev- khiav kev xaj xws li hnab zaub mov, thawv, thiab khob ntawv. |
|
Stack Type Flexographic Printing Xovxwm |
Compact qauv, tus nqi qis, ob -sided luam ntawv |
Cov me me -rau- nruab nrab batch ntau lawm rau cov khoom ntim khoom noj thiab lub thawv. |
|
Inline Flexo Printing Tshuab |
Saj zawg zog configuration, txhawb inline converting units |
Lub hnab ntim khoom, ntim khoom plig, thiab ntau yam ntawv ntim uas xav tau cov txheej txheem hloov pauv / lamination. |
Cov qauv pom zoo
Peb pom zoo cov tshuab luam ntawv flexo hauv qab no rau daim ntawv thov, tsim los ua kom tau raws li ntau yam kev xav tau los ntawm siab -kawg zoo luam ntawv mus rau kev xaiv kev lag luam rau me me thiab nruab nrab- nplai ntawv luam ntawv.
Gearless Flexo Printing Tshuab
Gearless flexo tshuab luam ntawv yog tsim los rau siab -kawg lag luam, siv tag nrho -servo gearless tsav thiab lub tes tsho tshuab. Lub sijhawm tiag tiag -lub sijhawm kaw- lub voj nro tswj tuaj yeem txo cov ntawv stretching thiab wrinkling, thiab ua kom muaj txiaj ntsig zoo ntawm kev hloov haujlwm.
- Tshuab ceev: 500m / min
- Kev sau npe raug: ± 0.05mm
- Xim chaw: 4-10 xim (customizable)
- Siv tau cov substrates: 12-400g / m² ntau cov ntawv thiab cov ntawv sib xyaw substrates

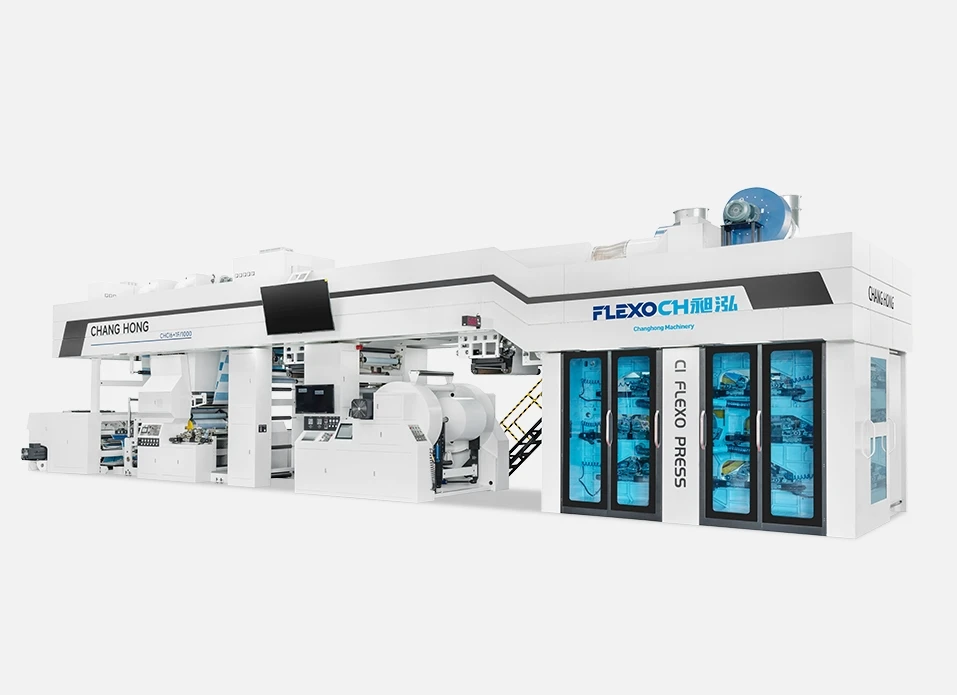

Central Drum Flexo Printing Tshuab
Central nruas flexo tshuab luam ntawv yog nruab nrog lub hauv paus impression nruas, uas tuaj yeem txo qhov kev sau npe yuam kev. Qhov loj - ntim kub- cua tshuab ua kom ceev cov number case kom qhuav thiab ci xim txawm tias thaum luam ntawv siab - ntawv nqus ntawm qhov kub ceev.
- Tshuab ceev: 200-350m / min
- Kev sau npe raug: ± 0.1mm (customizable)
- Xim chaw: 4-10 xim
- Siv tau cov substrates: 12–200g / m² ntawv thiab ntawv- cov ntaub ntawv yas sib xyaw

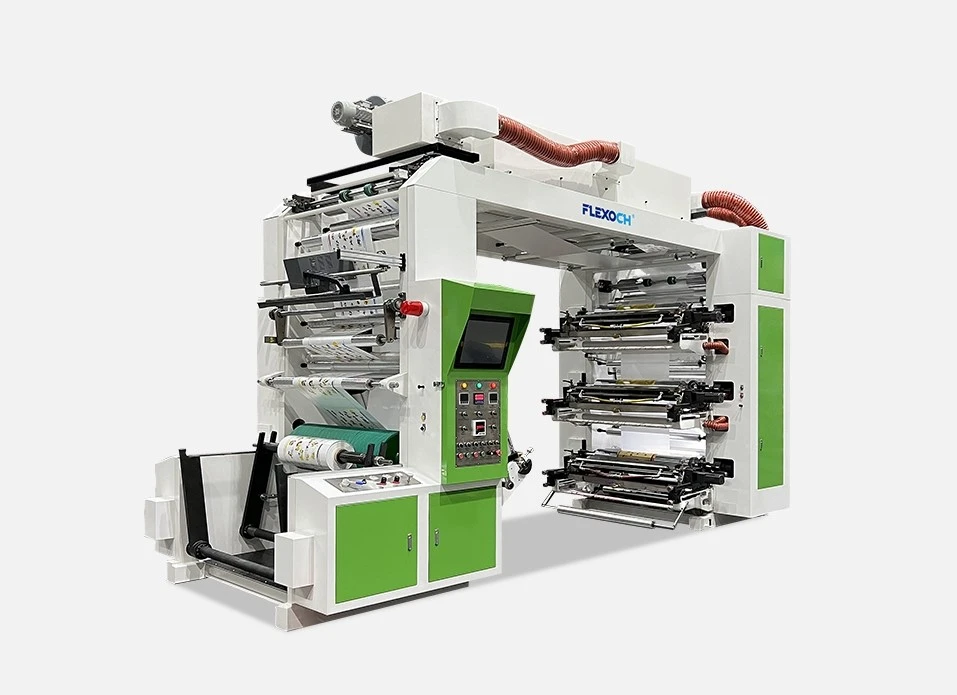

Stack Type Flexographic Printing Xovxwm
stack hom flexographic luam ntawv xovxwm tsom rau kev lag luam thiab kev ua tau zoo, txhawb nqa ob -sided printing, thiab yooj yim rau kev khiav lag luam. Cov txheej txheem kub - huab cua tuaj yeem tiv thaiv kev nkag mus rau tus lej, uas tsim nyog rau cov ntawv luam tawm.
- Tshuab ceev: 100-120m / min
- Kev sau npe raug: ± 0.15mm
- Xim chaw: 2-10 xim (customizable)
- Siv tau cov substrates: 30-200g / m² ntau cov ntawv thiab cov ntawv sib xyaw
Inline Flexo Printing Tshuab
Inline flexo tshuab luam ntawv txais cov qauv qauv, tsim los rau kev tsim khoom. Nws tuaj yeem ua tiav kev luam ntawv thiab tshaj tawm - ua tiav hauv ib txheej txheem, nrog rau kev ua haujlwm yooj yim.
Tshuab ceev: 180m / min
Kev sau npe raug: ± 0.15mm
Xim chaw: 4-10 xim (customizable)
Siv tau cov substrates: 20-200g / m² ntau yam ntaub ntawv thiab cov ntaub ntawv sib xyaw
Vim li cas thiaj xaiv ChanghongNtawvFlexo Printing Tshuab
Changhong tau tsom mus rau R&D thiab kev tsim cov tshuab luam ntawv flexo, thiab txuas ntxiv txhim kho lub tshuab ua haujlwm raws li qhov xav tau tiag tiag ntawm cov ntawv ntim tshuab luam ntawv, suav nrog kev tswj nruj, kev sau npe ruaj khov, kev ziab kom qhuav thiab siab - muaj peev xwm ntau lawm. Txawm hais tias nws yog eco- cov hnab ntawv tus phooj ywg, ntim khoom noj lossis siab - ntawv luam ntawv zoo, peb tuaj yeem muab cov kev daws teeb meem flexo luam ntawv ruaj khov thiab ua tau zoo raws li qhov sib txawv ntawm cov neeg siv khoom xav tau.
Yeem Configurations rau ntawv luam ntawv
- Muab ob npaug rau-sided luam ntawv: Nws tuaj yeem ua tiav cov luam ntawv ntawm ob sab ntawm daim ntawv hauv ib txheej txheem, nrog rau kev tso npe ruaj khov
- Shaftless pub mis: Nws yooj yim dua rau thauj cov ntawv yob, thiab tuaj yeem tiv thaiv ntug ntawm daim ntawv zoo dua
- Kev sib txhuam winding: qhov nro tuaj yeem hloov kho raws li qhov xwm txheej tiag tiag, txo qhov wrinkling ntawm daim ntawv thaum ua haujlwm
- Precision slitting: Lub txiav ntug yog smoother, uas zoo txhim kho cov efficiency ntau lawm
